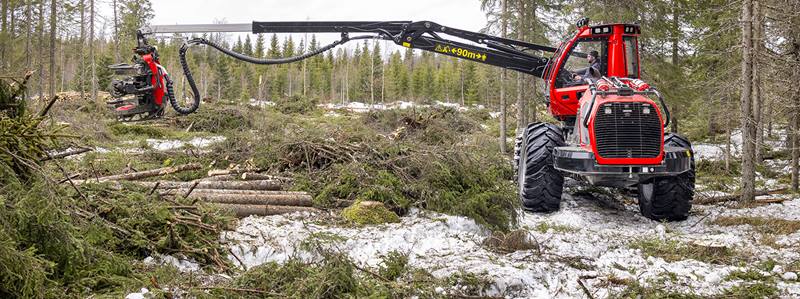

Komatsu 951-2
Powerful harvester for final felling
Komatsu 951-2
Our largest six-wheeled harvester is both productive and powerful, optimised as it is for final felling. It offers high performance and the sturdy crane can carry extremely large heads.
- 28.5" wheels and generously sized bogies enable this machine to pass obstacles easily
- 280H crane with 10.3 / 11 m reach
- Choose from our range of options to customise your machine and make your working day even more comfortable and productive
Power
250 kW @ 1 850 rpm
EU Stage V, Tier 4F
Gross lifting torque
285 kNm
210,205 lbf-ft
Max tractive effort
227 kN
51,030 lbf
Weight
From 23 289 kg
51,343 lb
Specifications
951-2
Overview
Dimensions
A. Width
With 710/55x28.5" tyres: 2990/3 060 mm
B. Length, total
8 285 mm (27'2")
C. Length, front axle to middle joint
2 300 mm (7'7")
D. Length, middle joint to rear axle
1 850 mm (6'1")
E. Transport height
Straight cab: 3965–4025 mm (depending on options). Transport position (cab max rear tilt, crane forward, light ramp tilted): 3940 mm
F. Ground clearance at steering joint
665 mm (2'2")
Note
Stated dimensions are nominal and may vary slightly depending on production tolerances and choice of equipment.
Weight
Approximate weight
From 23 289 kg (51,343 lb)
Engine
Type
AGCO Power 75FSTN-D5, 6-cylinder diesel engine with turbo and intercooler
Stroke volume
7.5 l (1.98 gal)
Power
250 kW @ 1 850 rpm (EU Stage V, Tier 4F)
Torque
1 450 Nm @ 1 500 rpm
Fuel tank
529 l (139.7 gal)
Boom
Model and reach
280H: 10,3 / 11 m (33'9.5" / 36'1")
Gross lifting torque
285 kNm (210,205 lbf-ft)
Gross slewing torque
60 kNm (44,254 lbf-ft)
Heads
Available heads
C124, S132, C144, S172, C164, 370E, S162E
Hydraulic system
Flow
485l/min @ 1470 rpm
System pressure
280 bar
Electrical system
Voltage
24 V
Battery capacity
2 x 185 Ah
Generator
200 A
Transmission
Driving speed
0-24 km/h (14.9 mph)
Tractive force
227 kN (51,030 lbf)
Notes
General information
The specifications describe possible equipment, not which equipment is standard or optional. Standard and optional equipment varies between countries. Your sales representative has an up-to-date list of what is included. Weights are based on the equipment specified in the basic specification. Specifications and designs are subject to alteration without prior notice.
