Komatsu C93

Strong, smart and profitable harvester head

Komatsu C93

Komatsu C93 is a highly productive, allround harvesting head for thinning that provides you with extra benefits through industry-leading experience and innovation.

Download brochure

Weight (dry weight)

From 995 kg (2,194 lb)

Height (incl. rotator)

1 530 mm (60.2”)

Fell/cut diam. theor. max

600 mm (23.6”)

Feed speed

0-5 m/s (0-16.4 ft/s)

Features

Energy-efficient feeding

The C93 is a “carry style” head, where the stem is carried by the feed wheels and the delimbing knives are mainly used for delimbing the stem. The feed system is designed with three driven feed wheels, one of which is a belly roller, making it productive yet gentle.

Another benefit of the C93 is the efficient hydraulic system, which ensures low energy consumption.

Constant Cut

Constant Cut, our intelligent saw motor control, ensures that the head has a constant and efficient saw motor speed throughout the complete cutting cycle. This, in turn, ensures efficient cutting and limits problems with cutting cracks.

Productive options

There are several options that help boost productivity for the C93. The multi-tree equipment enables you to harvest several trees at a time, making the head more flexible and contributing to increased productivity.

Another option is the Find End function that allows you to reset the length measurement without needing to make a new cut first, reducing harvesting residue and minimising value losses.

Combining these options with the color-marking feature turns the C93 into a versatile and multifunctional tool for the forest.

Service friendly

Servicing the head is made safe and easy with centralised lubrication points. This means that all service points, including colour marking and chain grease/lubrication, can be reached without repositioning the head from the service position.

The chain has an auto-release function to minimise unplanned downtime when changing chains. The auto-release function also means that you don’t need any tools to change the chain

Specifications

C93

Overview

Komatsu C93 harvester head dimensions
Width, max

1 410 mm (55.5”)

Height incl. rotator

1 530 mm (60.2”)

Height to top knife

1 370 mm (53.9”)

Roller opening, max

550 mm (21.7”)

Opening front knife to rear knife

675 mm (26.6")

Opening front knives

610 mm (24")

Weight

Dry weight, incl rotator, from 995 kg (2,194 lb)

Feed speed

0-5 m/s (0-16.4 ft/s)

Gross feed force

Feed roller motor dependent: 22.5 kN (5,058 lbf) / 28.4 kN (6,385 lbf)

Feed wheel type

Steel

Delimbing knives, number

4

Delimbing dia., tip-to-tip

400 mm (15.7")

Saw bar

75 cm (29.5”)

Saw motor

19 cm3/rev (1.16 cu in/rev)

Fell/Cut diam. theor. max

600 mm (23.6”)

Max hydraulic flow

Feed roller motor dependent: 250 l/min (67.4 gal/min) / 305 l/min (80.6 gal/min)

Max hydraulic pressure

28 MPa (4,061 psi)

General information

Standard and extra equipment are market-dependent and vary between countries. The specification describes possible equipment, not that which is standard or optional. Stated weights are based on standard equipment. Specifications and designs are subject to change without notice.

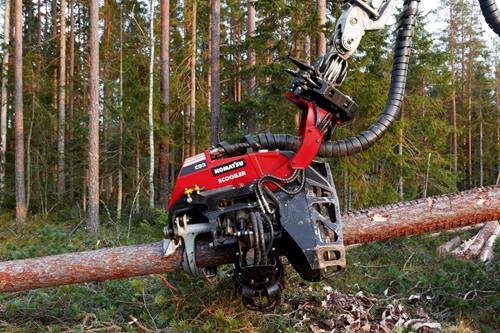

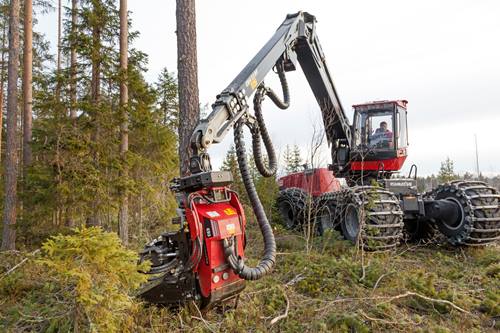

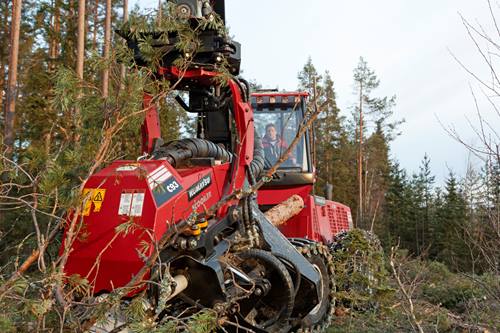

Gallery
