Komatsu 835TX

Nimble and productive thinning forwarder

Komatsu 835TX

The combination of agility and power makes the Komatsu 835TX perfect for thinning. The compact design, high ground clearance and fuel-efficient engine not only optimise performance, but also reduce environmental impact.

Download brochure

Gross load

11 000 kg (24,251 lb)

Power

127 kW DIN at 1900 r/min

Torque

750 Nm at 1500 r/min

Tractive force

163 kN

Features

Komatsu 835TX

A machine for you

-11-tonne load capacity
-105F crane in 7.8 / 9.5 / 10 m reach
-Choose between options such as tiltable crane pillar and thinning frame
-Extra long rear frame for double loads (option)
-24.5” wheels - Choose between wheel width 600 / 710 / 800 mm
-Customise your load space with the optional Flex Bunk
-Choose between different grapple options to find the one that suits you

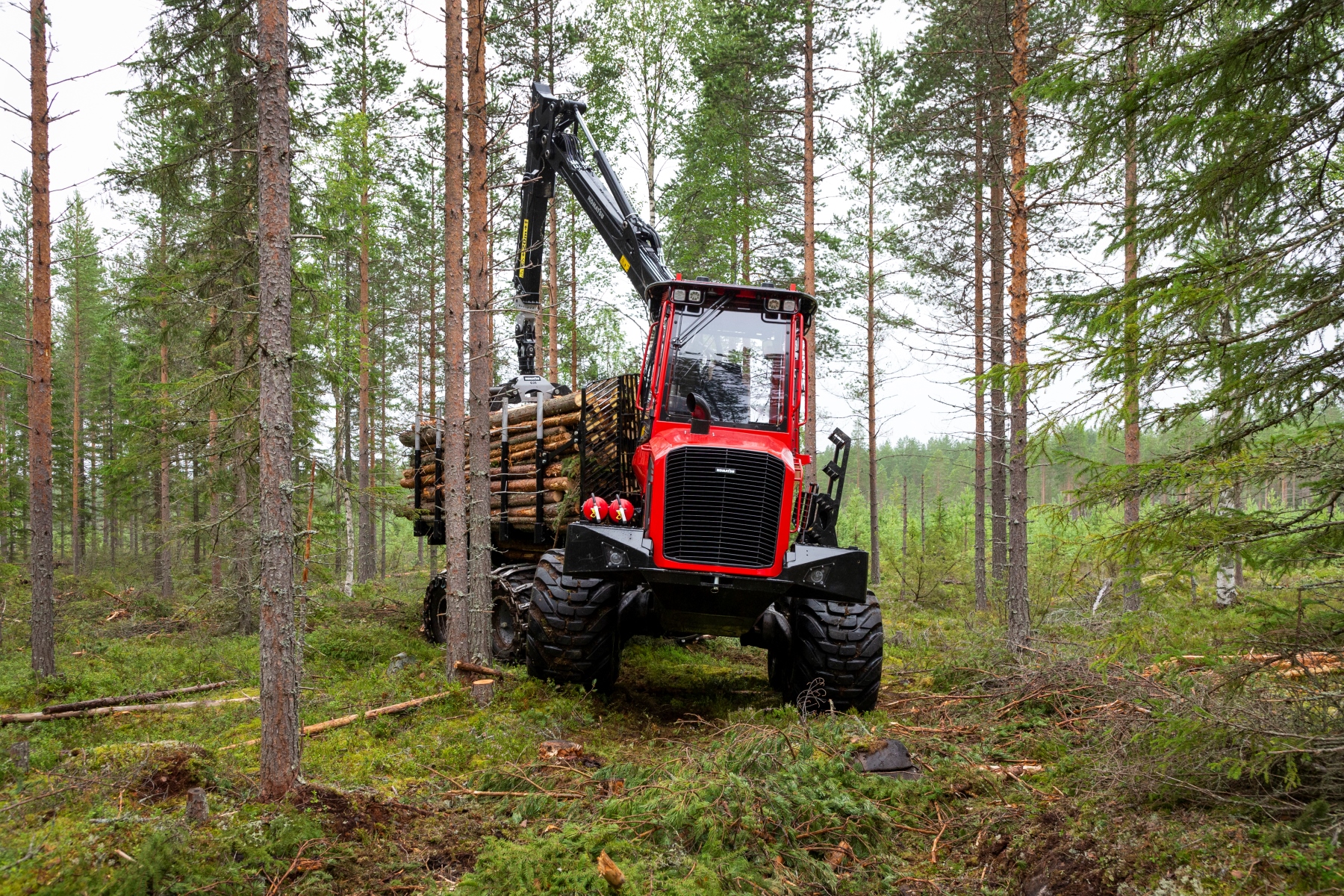

Komatsu 825TX Tracking frame

Agile and productive in tight stands

Our thinning machines navigate narrow stands smoothly while delivering consistently high production. TX machines can be equipped with an innovative tracking frame that allows the rear wheel tracks to almost completely follow the front, with a deviation of less than 200 mm.
Komatsu 825TX Thinning gate and bunks

A load space adapted for thinning

With a load space specially designed for thinning, every detail is customised to give the best results in tight spaces. Both the gate and the stakes tilt inwards to reduce the risk of hitting remaining trees when the machine moves sideways on uneven terrain.

The gate is manually movable as standard but for extra flexibility a hydraulically movable gate is available as an option. To maintain the agile design, the gate and the first bunk are mounted together.
Komatsu 825TX View

Good visibility makes the job easier

Good visibility is an important prerequisite for efficient and gentle work in dense thinnings. In a Komatsu forwarder, you always have excellent visibility in all directions - even down over the wheels.

The gate is cleverly designed to provide good visibility through the ribs and is also painted with a matt colour to avoid disturbing reflections.
Komatsu grapple

Handle timber like a pro

Komatsu grapples are designed to deliver high productivity in tough environments. With a large opening and good retraction properties, the grapples make it easy to gather, straighten and grip timber quickly and efficiently.

The 11 different models, including specialised variants for bioenergy and heavy-duty applications, ensure there is a grapple for every need. Their robust design and high durability make them a reliable tool, helping you to work more efficiently and profitably.
More forwarder benefits

Some of our forwarder options

Komatsu 855

Flex Bunk - Complete flexibility

Flex Bunk is our flexible bunk system that can be customised to meet your specific needs. The standard version includes fixed stakes and a standard bunk width, but with several options available to allow you to easily tailor your load space.

Hydraulically adjustable stakes provide faster crane operations and improved fuel economy. Using the widening kit, the width of the load space can be easily adjusted using the crane as required*.

*Not for 835TX

Comfort Ride 2021

Komatsu Comfort Ride

A forwarder operator spends many hours a day in the cab, making a pleasant and comfortable work environment extremely important. Komatsu Comfort Ride efficiently dampens jolts and vibrations, ensuring an ergonomic work environment. This in turn contributes to higher productivity and better profitability.

The new generation of Komatsu Comfort Ride comes with comfort-enhancing features like adjustable sideways firmness and automatic side levelling at standstill and at low speed. The elevated unloading mode now also works at low speed, to make it smoother to reposition the forwarder at the landing. Great news for all forwarder operators!

Download brochure
Komatsu Smart Crane

Smart Crane

Since such a large share of a forwarder operator's working day involves crane operation, increased efficiency offers great potential. Smart Crane provides the operator with advantages such as simpler crane operation, less physical strain and higher productivity. Advantages that benefit both profitability and the operator's wellbeing. Everything to make it as easy as possible for the operator to focus on what is truly important – moving timber to the roadside.

Download brochure
MaxiFleet

Smart Forestry

Smart Forestry gives you access to a collection of digital services that help make the workplace safe, smart, productive and sustainable - whether you have one or a hundred forest machines. You can keep track of your machines, collaborate with colleagues, and make wise decisions based on facts.

Smart Forestry consists of three different applications, making it easy for you to find the one that suits you and your business.

More About Smart Forestry

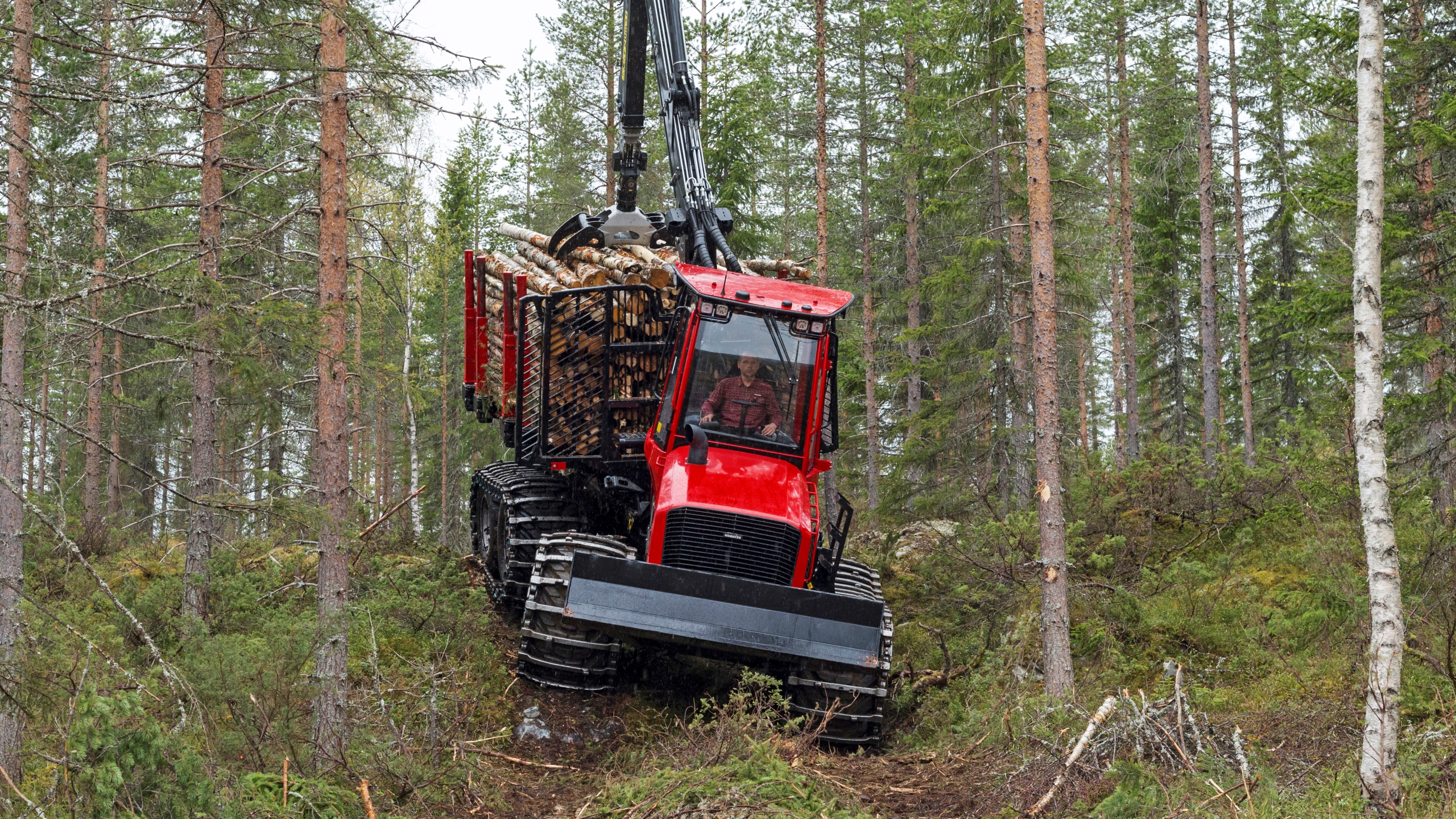

SpeedShift

Speed Shift

Speed Shift is a smart gearbox solution with dual hydrostatic motors, with the forwarder automatically changing up a gear as the operator increases speed. This enables the machine to accelerate continuously within the full speed range without any additional operator intervention. In this way, the engine can work at optimal engine speed most of the time, which saves fuel and provides a quiet and more comfortable work environment.

The automatic gear changes enable increased transport speed where ground conditions allow. This can include, for example, relatively flat access roads in otherwise hilly terrain that can be covered at faster speed. The longer the forwarding roads, the greater the benefit offered by Speed Shift.

Specifications

835TX

Overview

Komatsu Forwarder Dimensions
A. Width

With 600/50x24,5 tyres: 2 620 mm (8'7")

B. Length, total

9 380 mm (30'9") (with shortest rear frame)

C. Length, front axle to middle joint

1 900 mm (6'3"), 2 150 mm (7'1") with tracking frame

D. Length, middle joint to rear axle

2 900 mm (9'6"), 2 650 mm (8'8") with tracking frame

E. Transport height, with hoses and tire compression

3 840 mm (12'7") / 3 800 mm (12'6") 105F with crane tilt

F. Ground clearance, at steering joint

610 mm (2'0")

Note

Stated dimensions are nominal and may vary slightly depending on production tolerances and choice of equipment.

Approximate weight

From 16 040 kg (35,362 lb)

Type

AGCO Power, 4-cylinder diesel engine with turbo and intercooler. EU Stage V (Europe), EPA Tier 4F (North America)

Stroke volume

4,9 l (1.3 gal)

Power

127 kW DIN at 1900 rpm.

Torque

750 Nm at 1 500 rpm

Fuel Tank

145 l (38.3 gal)

Gross load

11 000 kg (24,251 lb)

Bunk area

3,3 - 4,4 m² (35,5 - 47,4 sq.ft)

Crane

Komatsu 105F

Reach

7.7 m (25’ 4”) / 9.5 m (31' 2'') /10 m (32' 9'')

Gross lifting torque

103 kNm (75,969 lb-ft)

Gross slewing torque

28,7 kNm (21,170 lb-ft)

Rotator

G121/GT151

Grapple

Komatsu G28

Max hydraulic flow

280 l/min (74 gal/min) at 2 000 rpm

Voltage

24 V

Battery capacity

2 x 140 Ah

Generator

2 x 100 A

Driving Speed

0 - appr. 25 km/h (0 - appr. 15.5 mph)

Tractive Force

163 kN (36,644lbf)

General information

The specifications describe possible equipment, not which equipment is standard or optional. Standard and optional equipment varies between countries. Your sales representative has an up-to-date list of what is included. Weights are based on the equipment specified in the basic specification. Specifications and designs are subject to alteration without prior notice.
