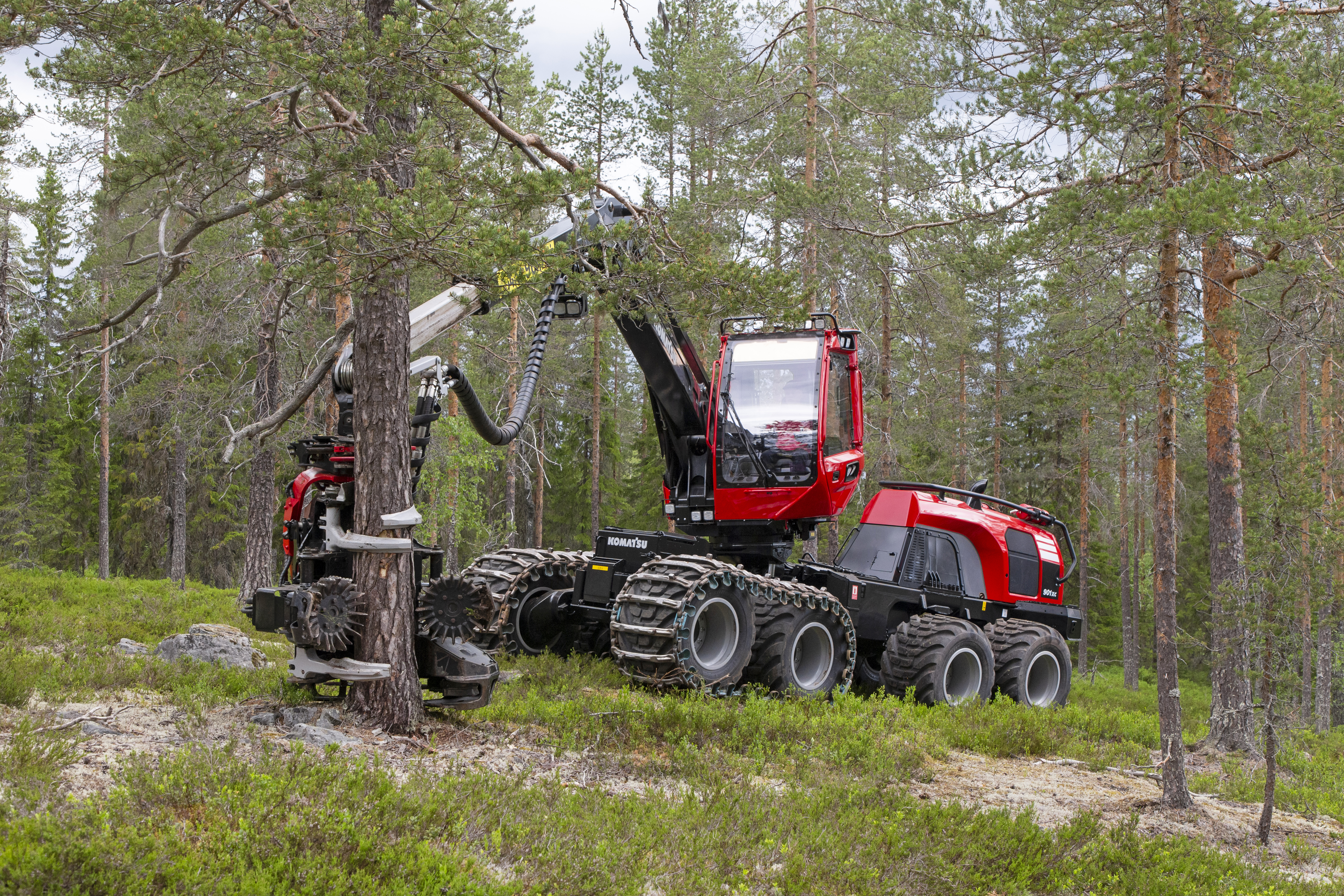

Komatsu 901XC

Stability regardless of the terrain

Komatsu 901XC

An agile thinning harvester for anyone harvesting in steep and difficult terrain. The eight-wheel design ensures an especially stable harvester that also leaves less of a mark thanks to its low ground pressure.

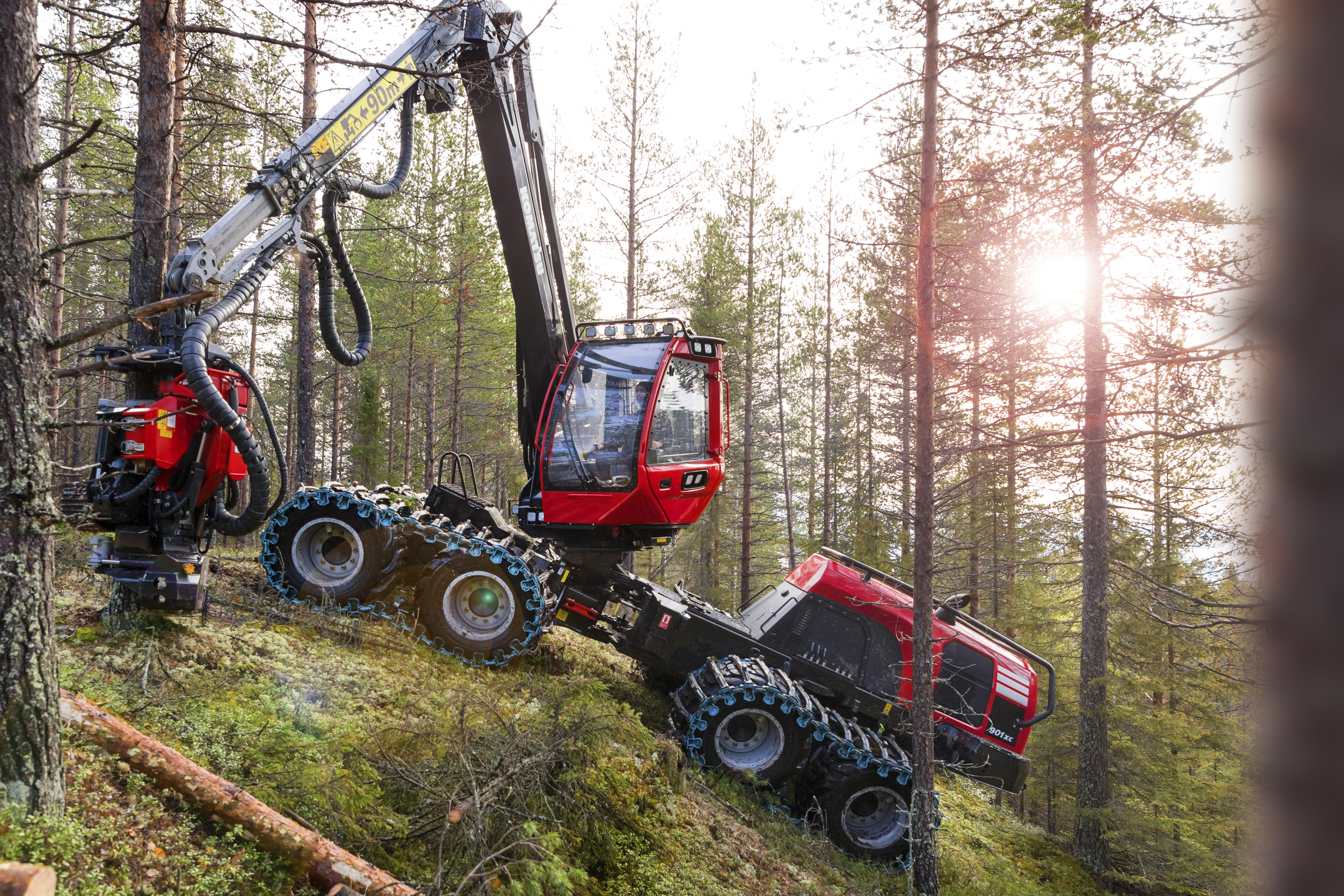

Komatsu harvester

Tailored to your working day

– Choose between two crane lengths: 10/11 metres

– Several productive heads to choose between, depending on the type of forest you harvest.
Komatsu 901

Agile and low-impact thinning

When thinning in dense forests, a harvester manoeuvred with both ease and agility without impacting standing forest is a must.

Our thinning harvesters are designed to do just that. Thanks to their compact size, they can operate in confined spaces and both the cab and the crane are designed for smooth movements to reduce the risk of damaging standing forest.

Another advantage is our tried-and-tested parallel crane, which simplifies crane operation. Thanks to a combination of strength and speed, it also contributes to efficient work methods.

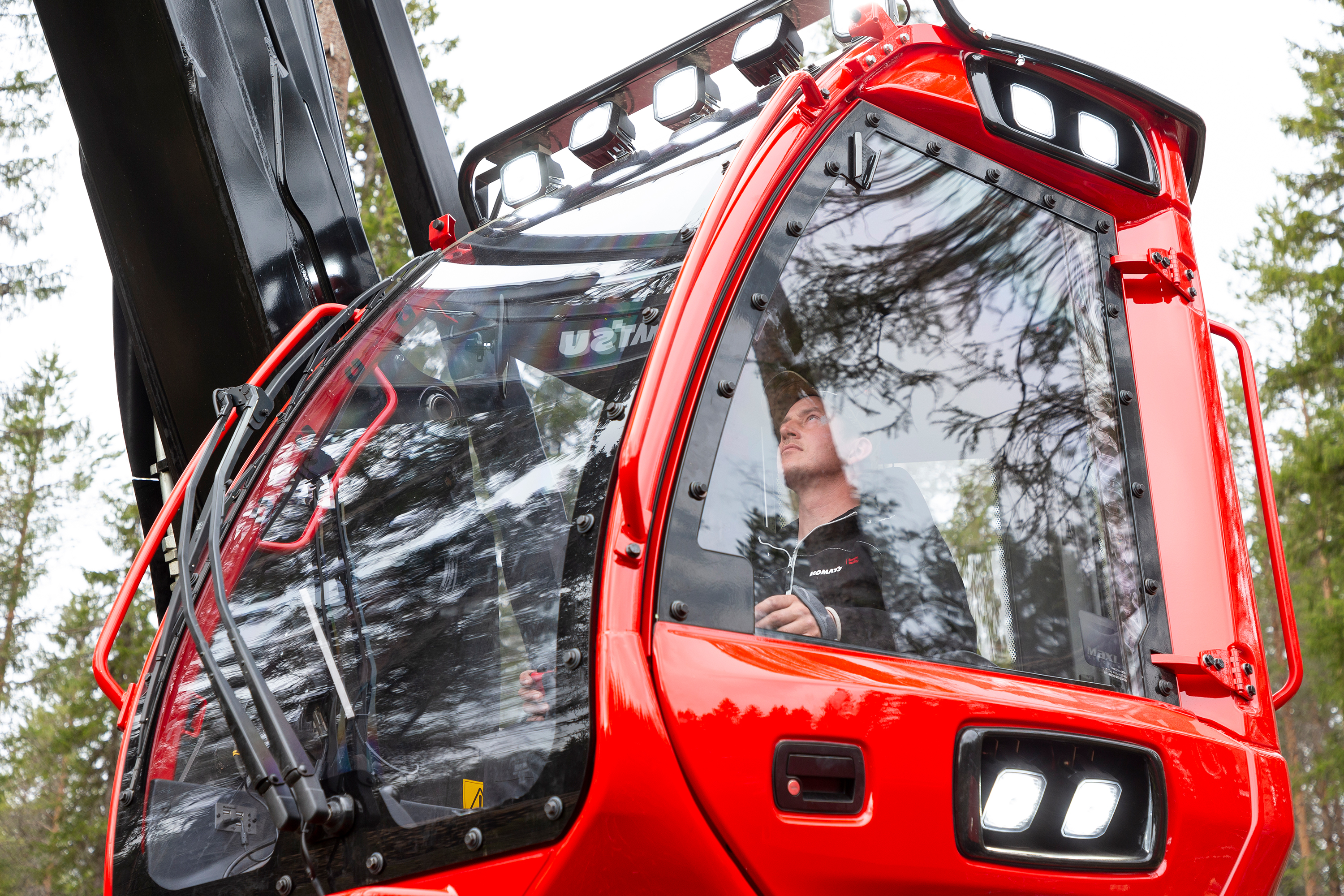

A good overview simplifies the work

While good visibility is always an advantage, in thinning it is especially important. Our harvester cab is designed to provide the operator with extremely good views of both the head and the treetops. Moreover, our thinning harvesters are also lower than the larger machines, enabling you to see the trees from a better angle when thinning.

In a Komatsu harvester, you sit facing the same direction as the crane, which makes thinning easier as you can see exactly where you can extend the crane. This reduces the risk of misjudging the crane's position, meaning less damage to standing forest.

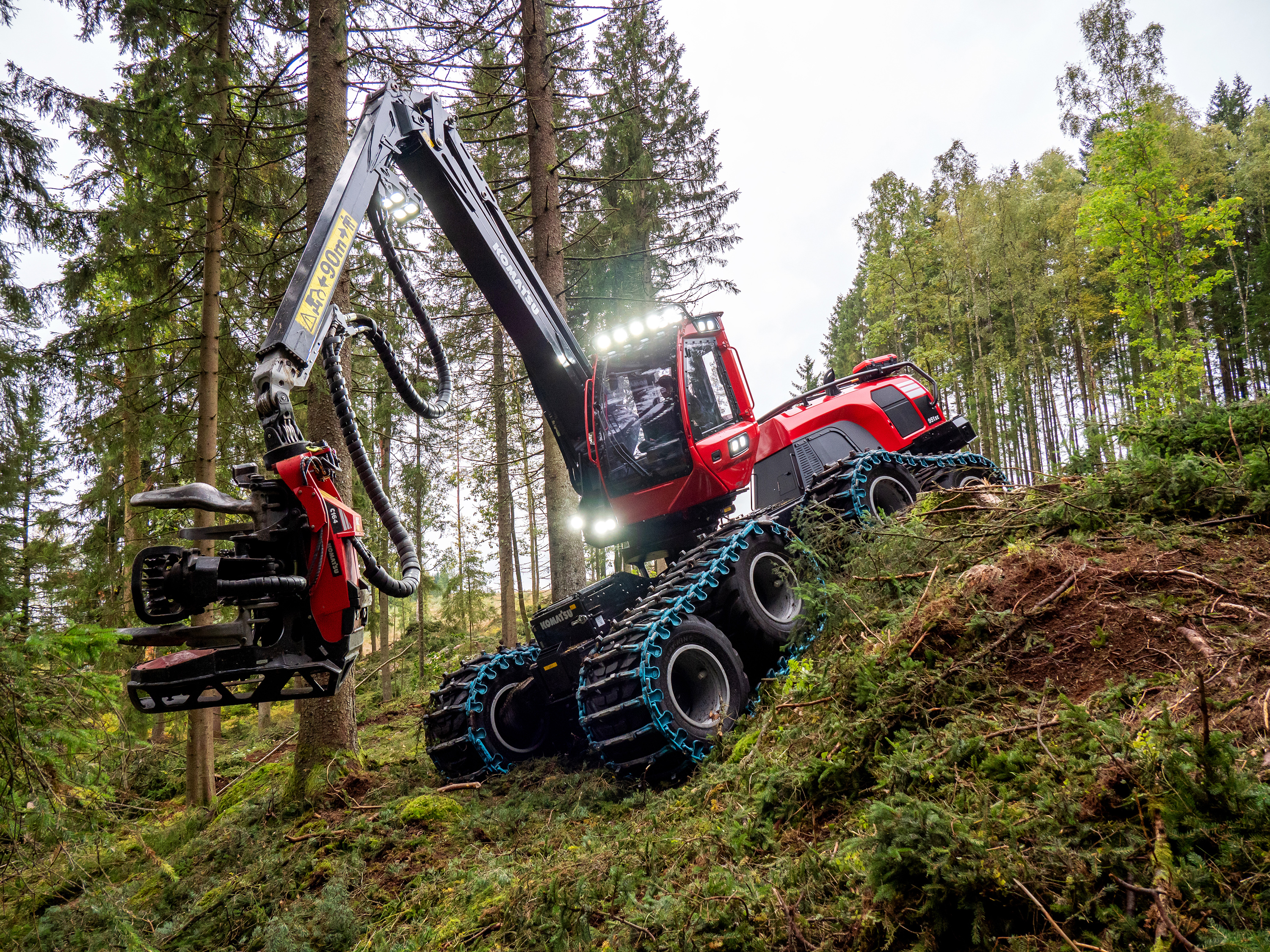

Komatsu 951XC

Low ground pressure and high stability

The XC machines are specially developed for logging in hilly terrain and on soft ground. Thanks to the 8-wheel design, our machines have a lower ground pressure, which makes them more gentle on the ground.

A factor that's also important when operating in demanding conditions is stability. Thanks to the Komatsu-concept, our harvesters have a design that contributes to making them among the most stable harvesters on the market. The XC machines take this one step further, with a double oscillating bogie on the rear frame, which makes sure the machine follows irregularities in the terrain in a smooth and forgiving manner while delivering excellent manoeuvrability in challenging terrain conditions.

Some of our harvester options

Komatsu 901XC

The right head for every assignment

The choice of head always begins with the conditions faced in the forest. There are all kinds of trees, each of which poses different challenges requiring specialist solutions.

Our broad offering encompasses heads specially designed for particular types of forest and suitable for everything from initial thinning to final logging of the largest trees.

For the 901XC, you can choose between the following heads: S82, S92, C93, C124

Komatsu 901

Give your cab a finishing touch

The harvester cab has an ergonomic design with many added conveniences to help ensure job satisfaction. It can also be complemented with a wide range of extra equipment, should you want to tailor your workplace to suit your personal preferences. You can see a few of these options below, with more to be found in the brochure.

– Sequence control for both EME and mini joysticks
– Interior floor lighting and reading lamp on flexible arm
– Radio with Bluetooth and hands-free support
– Food box heater
– Cooler
– Sun shades
– Removable floor mat

By the way, did you know that the storage space in the panel behind the driver's seat can be used to cool bottles of drink? Ideal for keeping cool on hot days.

Smart Crane Harvesters

Crane operation at its easiest

For a harvester operator, an easily operated crane is important for ensuring a productive working day. With Komatsu Smart Crane, the crane – from the main boom all the way to the tip of the telescopic arm – is controlled with a single, smooth lever movement.

Thanks to the crane’s precision and responsiveness, the operator can easily steer the head where they want it, contributing to a more relaxed way of working. A relaxed operator can keep up a high and steady production during the day and still feel more refreshed at the end of the working day. Advantages that will be seen in both profitability and the operator’s well-being.


Leave nothing to chance

Smart Forestry gives you access to a collection of digital services that help make the workplace safe, smart, productive and sustainable - whether you have one or a hundred forest machines. You can keep track of your machines, collaborate with colleagues, and make wise decisions based on facts.

Smart Forestry consists of three different applications, making it easy for you to find the one that suits you and your business.

MaxiFleet Precision mindre

Smart Forestry Precision

Smart Forestry Precision uses the latest technology in satellite positioning to determine the machine’s position with an error margin of just a few centimetres. This paves the way for productive and smart work methods where the operator is provided with key information and support to enable informed decisions.

There are several useful functions within Precision, like the ability to create exact, digital fences to mark the borders of a work area or around protected areas. It's also easier to classify stems based on environmental considerations with the stem code visualisation tool.




Harvester Komatsu 901 dimensions
A. Width

With 600/45x24,5 tyres: 2 776 mm (9'1").

B. Length, total

7 705 mm (25'2")

C. Length, front axle to middle joint

1 850 mm (6'1")

D. Length, middle joint to rear axle

2 100 mm (6'11")

E. Transport height

3840 mm (12'7") to top of roof, straight cab. 3810 mm (12'6") backwards tilted cab with tilted light ramp. Both measurements with tire compression.

F. Ground clearance at steering joint

650 mm (12'6")


Stated dimensions are nominal and may vary slightly depending on production tolerances and choice of equipment.

Approximate weight

From 20 210 kg (44,555 lb)


AGCO Power 6-cylinder diesel engine with turbo and intercooler. EU Stage V, Tier 4 F and Stage II.

Stroke volume

6.6 l (1.74 gal)


EU Stage V & Tier 4F: 170 kW DIN at 1 900 rpm. Stage II: 165 kW DIN at 1 900 rpm


EU Stage V, Tier 4F and Stage II: 950 Nm (701 ft-lb) at 1 500 rpm

Fuel tank

415 l (102 gal)

Model and reach

200H : 10 m (32'10")/ 11 m (36'1")

Gross lifting torque

198 kNm (14,604 lbf-ft)

Gross slewing torque

43 kNm (31,715 lbf-ft)

Available heads

S82, S92, C93, C124


400 l/min (139 gal/min) at 1 600 rpm

System pressure

280 bar (4,061 psi)


24 V

Battery capacity

2 x 180 Ah


2 x 100 A

Driving speed

0 - approx. 21,5 km/h (0-13.4 mph)

Tractive force

184 kN (41,365 lbf)

General information

The specifications describe possible equipment, not which equipment is standard or optional. Standard and optional equipment varies between countries. Your sales representative has an up-to-date list of what is included. Weights are based on the equipment specified in the basic specification. Specifications and designs are subject to alteration without prior notice.
