Komatsu 845

Agile and versatile all-round forwarder

Komatsu 845

Made for thinning and light final felling, with a particular focus on agility, its compact but powerful design adapts smoothly to different conditions and ensures long-term productivity.

Download brochure

Gross load

12 000 kg (26,455 lb)

Power

140 kW DIN at 1900 r/min

Torque

800 Nm at 1500 r/min

Tractive force

172 kN (38,700 lbf)

Features

Komatsu 845

A machine for you

-12-tonne load capacity
-105F crane in 7.8 / 9.5 / 10 m reach - possibility to choose the stronger 130F crane as an option
-Tiltable crane pillar (optional)
-26.5“ wheels - choose between wheel width 600 / 710 / 800 mm
-Customise your load space with the optional Flex Bunk
-Extra long rear frame for double loads (option)
-Choose between different grapple options to find the one that suits you
Komatsu forwarder

Flexibility and strength for versatile assignments

Our all-round forwarders have a compact size that allows them to manoeuvre easily, even in tighter stands, while the strong transmission and powerful crane allow them to work with high productivity.

In other words, they are the ideal choice for those who work in both late thinning operations and lighter final felling.

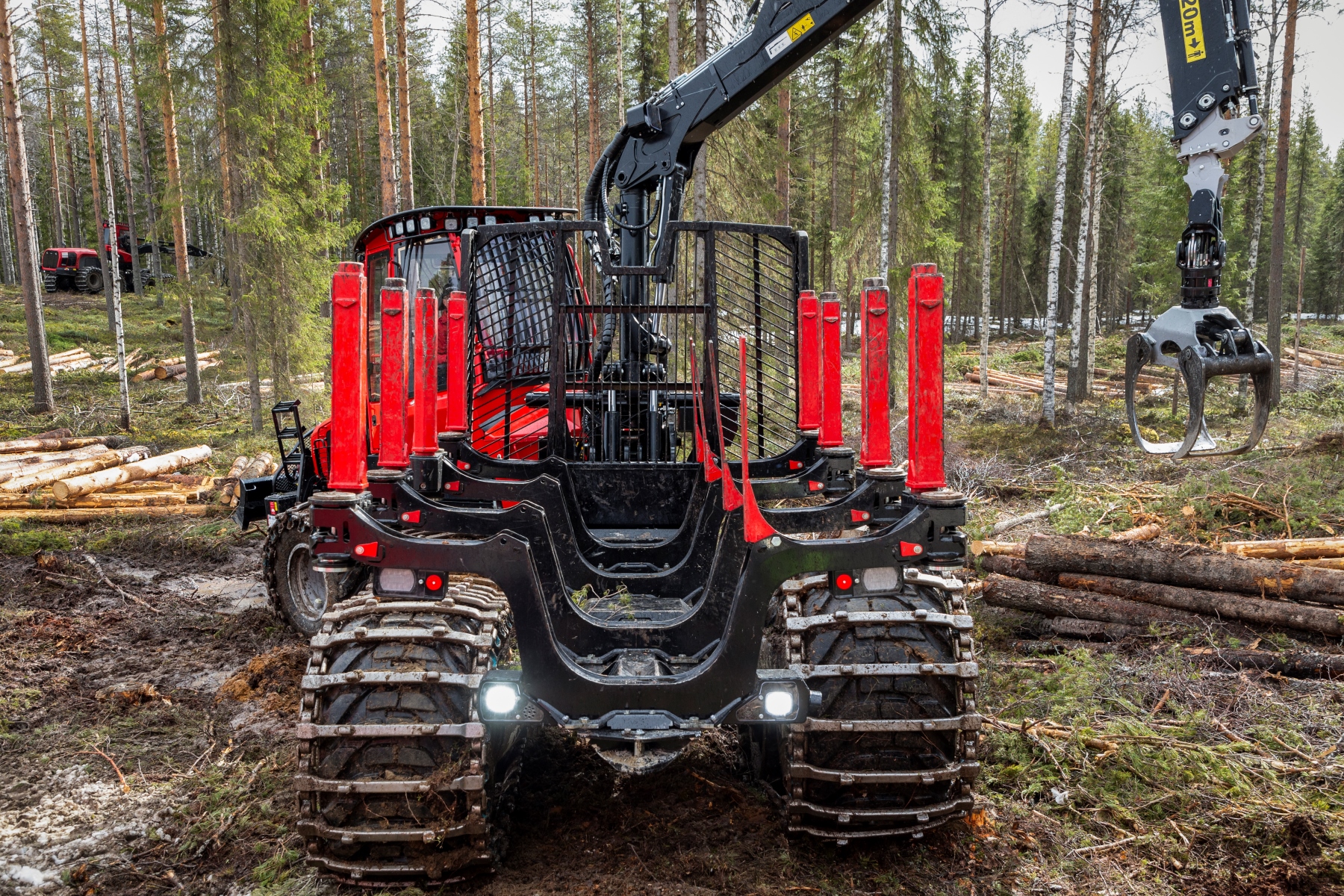

Komatsu 845 Load space

Customise your load space for increased productivity

Komatsu forwarders offer flexible load spaces with customizable solutions that increase your productivity. With Flex Bunk, you can easily adjust the bunks to match your specific work requirements.

Choose hydraulically height-adjustable stakes for faster crane operations and better fuel economy or customise the load space with a widening kit. The sleeves on the bunks can be folded in and out with the help of the crane, giving you the flexibility to handle different types of loads. With several options available, you can create a load space that suits your needs.
Komatsu grapple

Handle timber like a pro

Komatsu grapples are designed to deliver high productivity in tough environments. With a large opening and good retraction properties, the grapples make it easy to gather, straighten and grip timber quickly and efficiently.

The 11 different models, including specialised variants for bioenergy and heavy-duty applications, ensure there is a grapple for every need. Their robust design and high durability make them a reliable tool, helping you to work more efficiently and profitably.
More forwarder benefits

Some of our forwarder options

Komatsu 855

Flex Bunk - Complete flexibility

Flex Bunk is our flexible bunk system that can be customised to meet your specific needs. The standard version includes fixed stakes and a standard bunk width, but with several options available to allow you to easily tailor your load space.

Hydraulically adjustable stakes provide faster crane operations and improved fuel economy. Using the widening kit, the width of the load space can be easily adjusted using the crane as required*.

*Not for 835TX

Comfort Ride 2021

Komatsu Comfort Ride

A forwarder operator spends many hours a day in the cab, making a pleasant and comfortable work environment extremely important. Komatsu Comfort Ride efficiently dampens jolts and vibrations, ensuring an ergonomic work environment. This in turn contributes to higher productivity and better profitability.

The new generation of Komatsu Comfort Ride comes with comfort-enhancing features like adjustable sideways firmness and automatic side levelling at standstill and at low speed. The elevated unloading mode now also works at low speed, to make it smoother to reposition the forwarder at the landing. Great news for all forwarder operators!

Download brochure
Komatsu Smart Crane

Smart Crane

Since such a large share of a forwarder operator's working day involves crane operation, increased efficiency offers great potential. Smart Crane provides the operator with advantages such as simpler crane operation, less physical strain and higher productivity. Advantages that benefit both profitability and the operator's wellbeing. Everything to make it as easy as possible for the operator to focus on what is truly important – moving timber to the roadside.

Download brochure
SpeedShift

Speed Shift

Speed Shift is a smart gearbox solution with dual hydrostatic motors, with the forwarder automatically changing up a gear as the operator increases speed. This enables the machine to accelerate continuously within the full speed range without any additional operator intervention. In this way, the engine can work at optimal engine speed most of the time, which saves fuel and provides a quiet and more comfortable work environment.

The automatic gear changes enable increased transport speed where ground conditions allow. This can include, for example, relatively flat access roads in otherwise hilly terrain that can be covered at faster speed. The longer the forwarding roads, the greater the benefit offered by Speed Shift.

MaxiFleet

Smart Forestry

Smart Forestry gives you access to a collection of digital services that help make the workplace safe, smart, productive and sustainable - whether you have one or a hundred forest machines. You can keep track of your machines, collaborate with colleagues, and make wise decisions based on facts.

Smart Forestry consists of three different applications, making it easy for you to find the one that suits you and your business.

More About Smart Forestry

Specifications

845

Overview

Komatsu Forwarder Dimensions
A. Width

With 600/55x26,5 tyres: 2 620 mm (8'7")

B. Length, total

9 380 mm (30'9") (with shortest rear frame)

C. Length, front axle to middle joint

1 900 mm (6'3")

D. Length, middle joint to rear axle

2 900 mm (9'6")

E. Transport height, with hoses and tire compression

3 880 mm (12'9") / 3 840 mm (12'7") 105F with crane tilt

F. Ground clearance, at steering joint

660 mm (2'2")

Note

Stated dimensions are nominal and may vary slightly depending on production tolerances and choice of equipment.

Approximate weight

From 16 950 kg (37,368 lb)

Type

AGCO Power, 4-cylinder diesel engine with turbo and intercooler. EU Stage V (Europe), EPA Tier 4F (North America)

Stroke volume

4,9 l (1.3 gal)

Power

140 kW DIN at 1900 rpm.

Torque

800 Nm at 1500 rpm

Fuel Tank

145 l (38.3 gal)

Gross load

12 000 kg (26,455 lb)

Bunk area

3,5 - 4,8 m² (37,7 - 51,7 sq.ft)

Crane

Komatsu 105F, Komatsu 130F

Reach

105F: 7.7 m (25’ 4”) / 9.5 m (31' 2'') /10 m (32' 9''), 130F: 8 m (26'3") / 10 m (32'10")

Gross lifting torque

105F: 103 kNm (75,969 lb-ft), 130F: 127 kNm (93,670 lb-ft)

Gross slewing torque

28,7 kNm (21,170 lb-ft)

Rotator

G121/GT151

Grapple

Komatsu G28

Max hydraulic flow

280 l/min (74 gal/min) at 2 000 rpm

Voltage

24 V

Battery capacity

2 x 140 Ah

Generator

2 x 100 A

Driving Speed

0 - appr. 25 km/h (0 - appr. 15.5 mph)

Tractive Force

172 kN (38,700 lbf)

General information

The specifications describe possible equipment, not which equipment is standard or optional. Standard and optional equipment varies between countries. Your sales representative has an up-to-date list of what is included. Weights are based on the equipment specified in the basic specification. Specifications and designs are subject to alteration without prior notice.
