Komatsu S82

The light but strong harvester head

Komatsu S82

Nimble and light yet compact and strong – and with unbeatably high capacity. This is the combination that characterizes the two-wheel drive Komatsu S82 head. This is what makes it highly effective for thinning dense, challenging stands.

Features

Unbeatably high capacity

Nimble and light yet compact and strong – and with unbeatably high capacity. This is the combination that characterises the two-wheel drive Komatsu S82 head. This is what makes it highly effective for thinning dense and challenging stands. One of the reasons behind the high productivity is the two-wheel feed that allows the stems to turn in the head, even those that are forked or very crooked.

Constant Cut

The Komatsu S82 is equipped with a Constant Cut saw unit. This saw unit limits the chain speed to a maximum of 40m/s, which guarantees a high cutting speed without compromising safety.

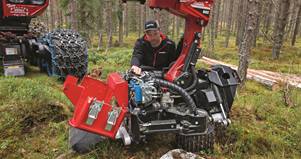

Service friendly

Easy service and maintenance with optimal access to all essential components

Flex Friction Control

A function that contributes to the high productivity is Flex Friction Control, which senses the stem's position relative to the frame and adjusts the knives' contact pressure against the stem accordingly.

Specifications

S82

Overview

Komatsu S82 harvester head
Width, max

1 185 mm (46.7")

Height incl. rotator

1 522 mm (59.9")

Height to top knife

1 428 mm (56.2")

Roller opening, max

460 mm (18.1")

Opening front knife to rear knife

532 mm (20.9")

Opening front knives

517 mm (20.4")

Weight

Dry weight, incl rotator, from 829 kg (1,828 lb)

Feed speed

0-5 m/s (0-16.4 ft/s)

Gross feed force

20,3 kN (4,564 lbf)

Feed wheel type

Steel

Delimbing knives, number

4

Delimbing dia., tip-to-tip

350 mm (13.8")

Saw bar

67 cm (26.4")

Saw motor

19 cm3/rev (1.16 cu in/rev)

Fell/Cut diam. theor. max

580 mm (22.8")

Max hydraulic flow

240 l/min (63.4 gal/min)

Max hydraulic pressure

28 MPa (4,061psi)

General information

Standard and extra equipment are market-dependent and vary between countries. The specification describes possible equipment, not that which is standard or optional. Stated weights are based on standard equipment. Specifications and designs are subject to change without notice.
