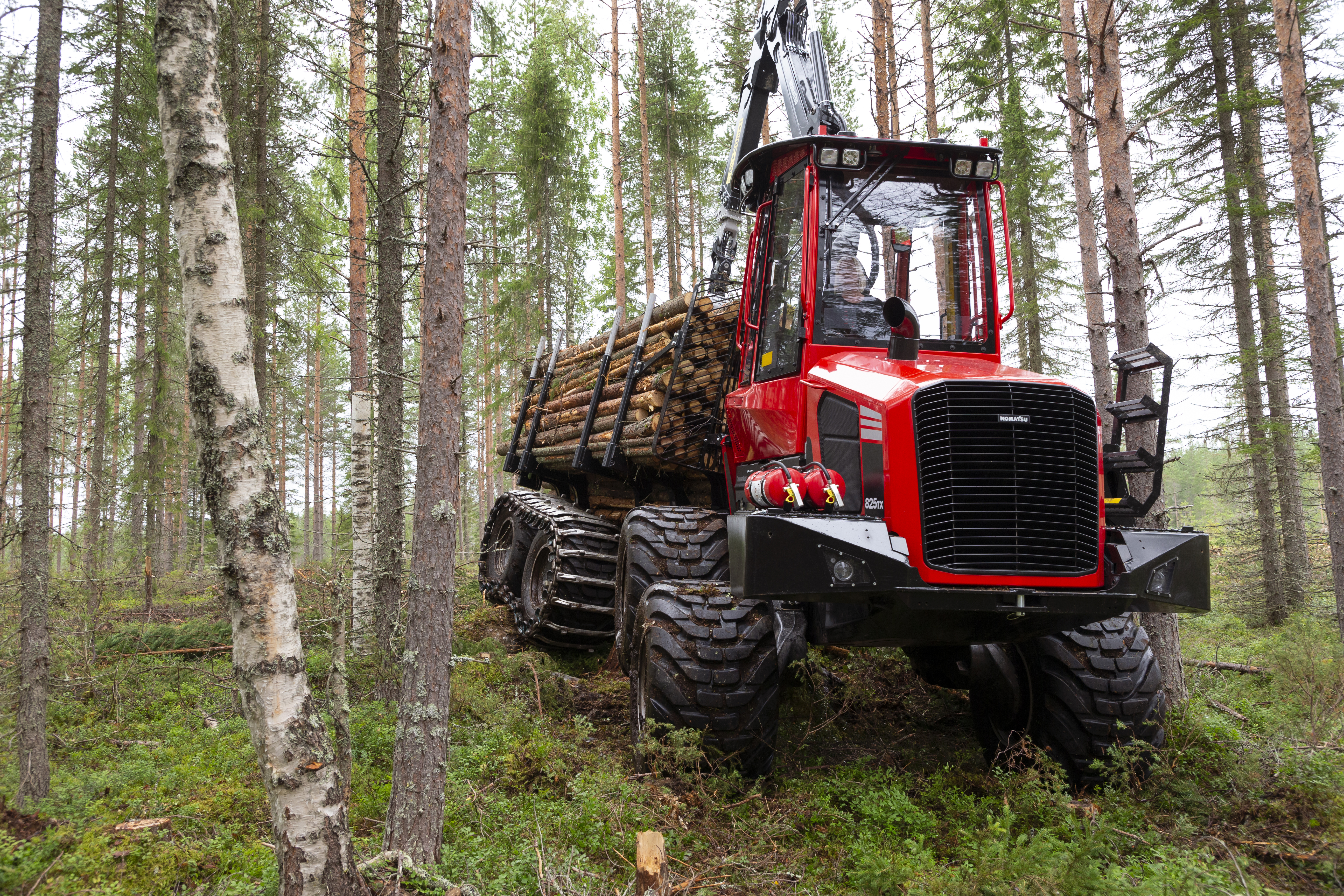

Komatsu 825TX

Compact thinning forwarder with good manoeuvrability

Komatsu 825TX

The thinning specialist that is powerful yet compact. Low weight, agility and strength are examples of features that all contribute to making the 825TX a profitable choice.

Download brochure

Gross load

9 000 kg (19,842 lb)

Power

127 kW DIN at 1900 r/min

Torque

750 Nm at 1 500 r/min

Tractive force

150 kN

Features

Komatsu 825TX

A machine for you

-9-tonne load capacity
-105F crane in 7.8 / 9.5 / 10 m reach
-Optional thinning frame
-22.5” wheels - Choose between wheel width 710 / 600 mm
-Choose between different grapple options to find the right one for your business

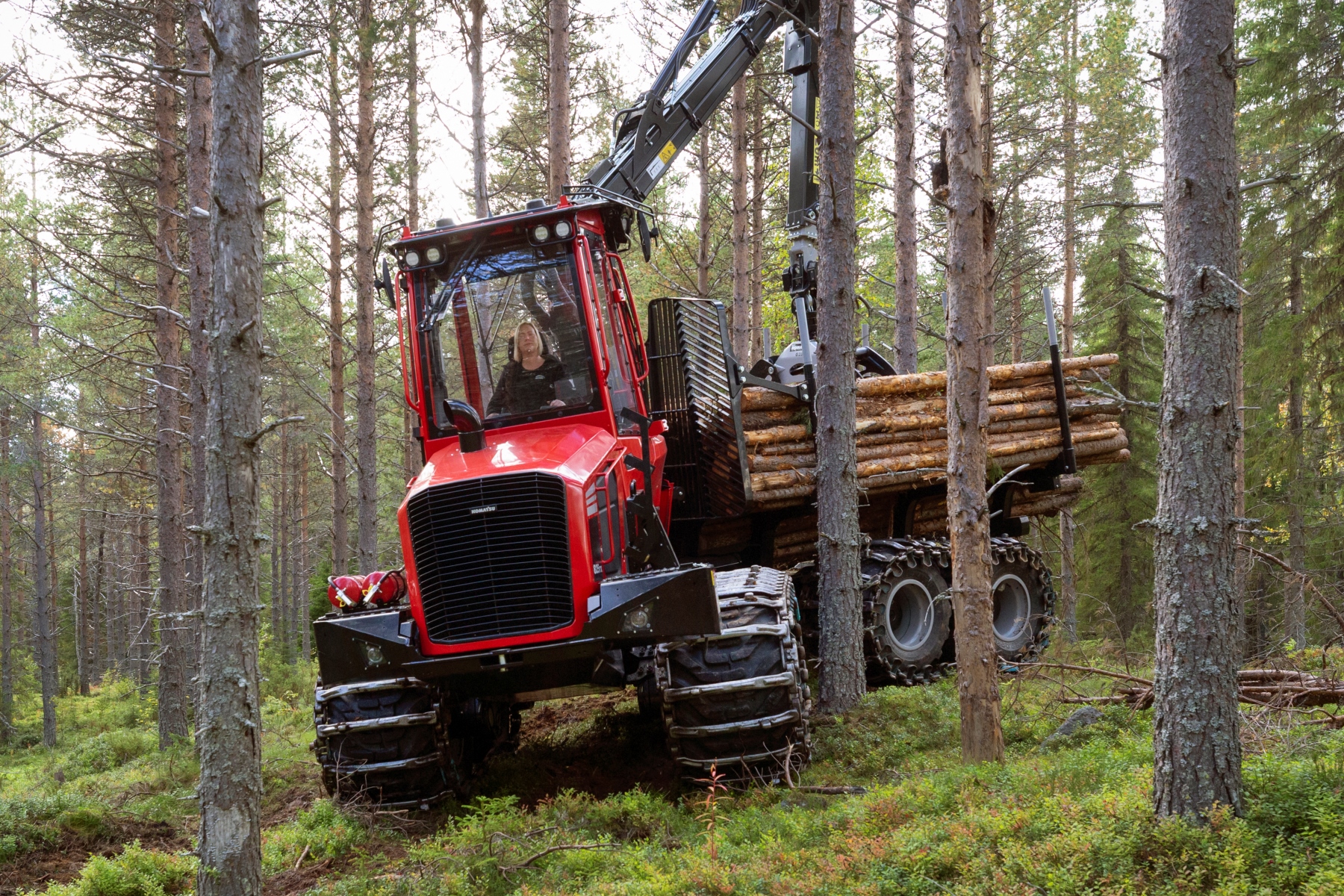

Komatsu 825TX Tracking frame

Agile and productive in tight stands

Our thinning machines navigate narrow stands smoothly while delivering consistently high production. TX machines can be equipped with an innovative tracking frame that allows the rear wheel tracks to almost completely follow the front, with a deviation of less than 200 mm.

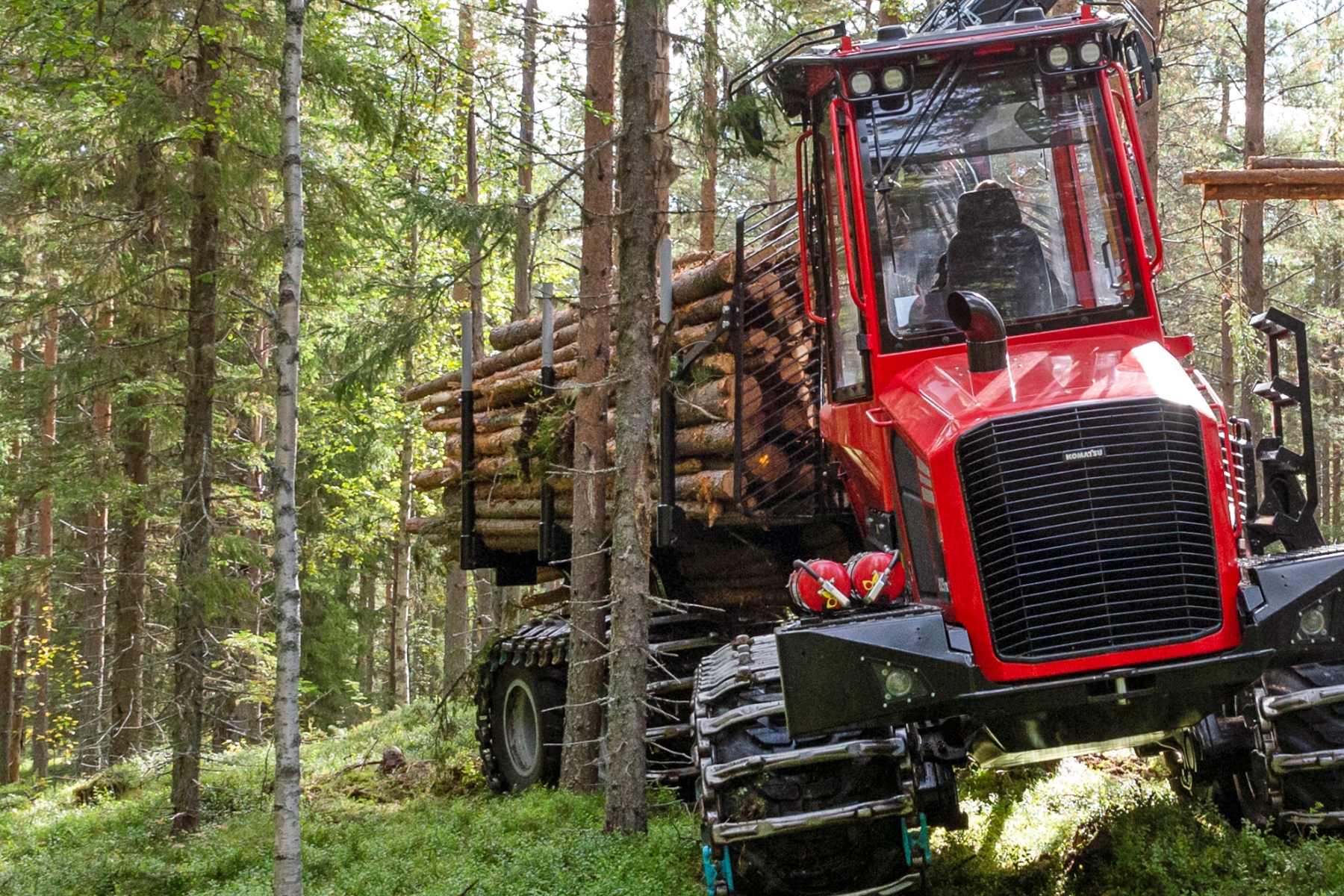

Komatsu 825TX Thinning gate and bunks

A load space adapted for thinning

With a load space specially designed for thinning, every detail is customised to give the best results in tight spaces. Both the gate and the stakes tilt inwards to reduce the risk of hitting remaining trees when the machine moves sideways on uneven terrain.

The gate is manually movable as standard but for extra flexibility a hydraulically movable gate is available as an option. To maintain the agile design, the gate and the first bunk are mounted together.

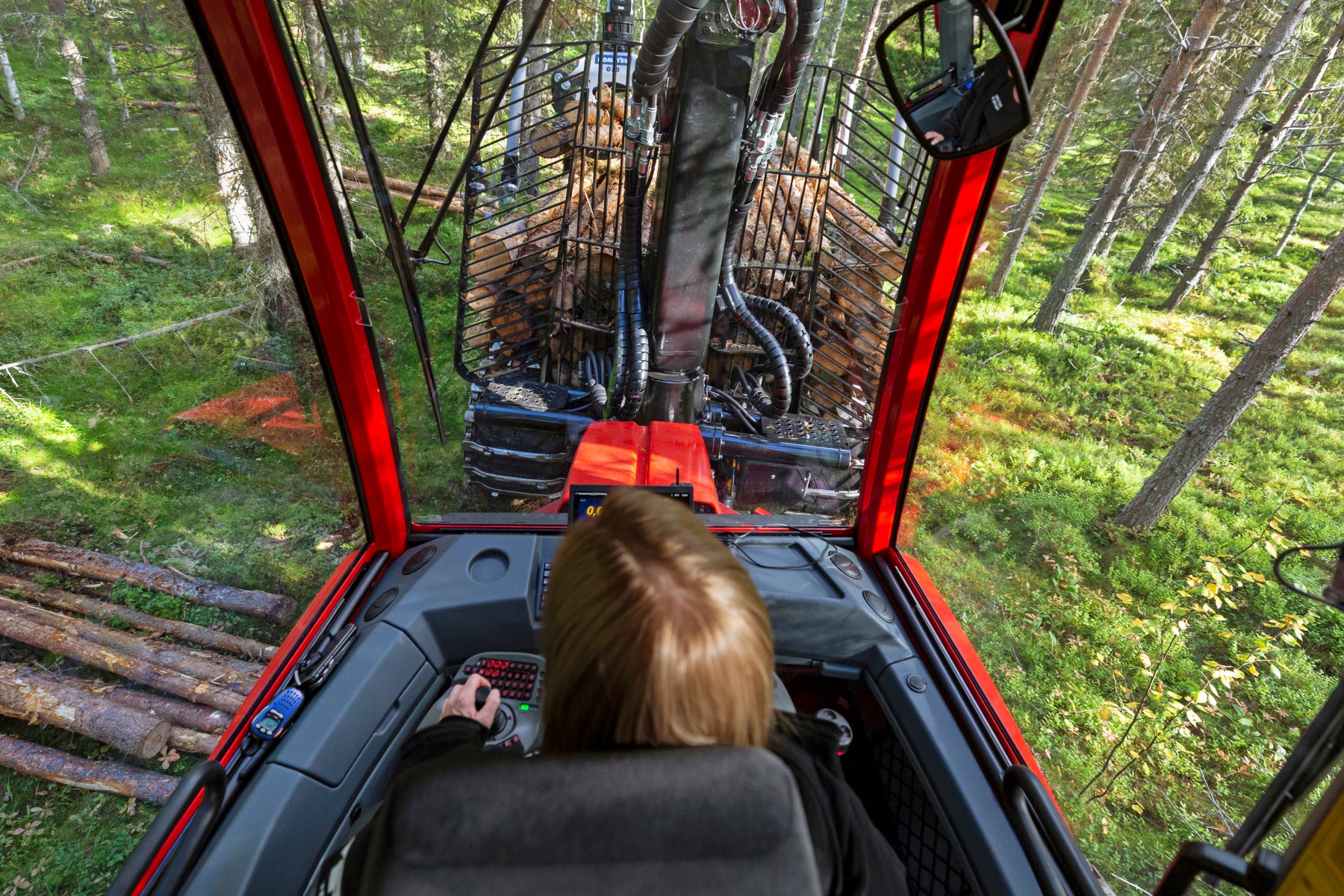

Komatsu 825TX View

Good visibility makes the job easier

Good visibility is an important prerequisite for efficient and gentle work in dense thinnings. In a Komatsu forwarder, you always have excellent visibility in all directions - even down over the wheels.

The gate is cleverly designed to provide good visibility through the ribs and is also painted with a matt colour to avoid disturbing reflections.

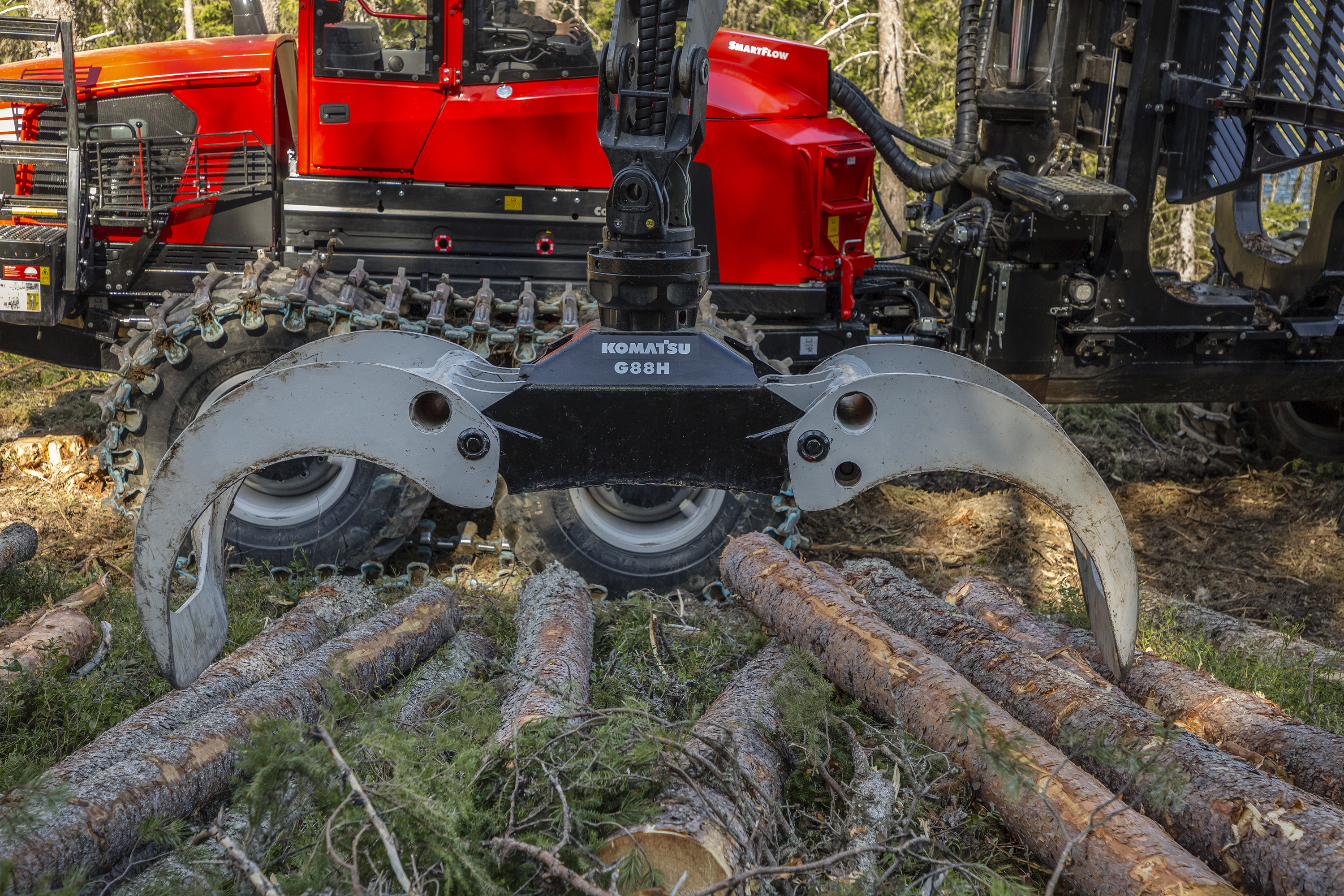

Komatsu grapple

Handle timber like a pro

Komatsu grapples are designed to deliver high productivity in tough environments. With a large opening and good retraction properties, the grapples make it easy to gather, straighten and grip timber quickly and efficiently.

The 11 different models, including specialised variants for bioenergy and heavy-duty applications, ensure there is a grapple for every need. Their robust design and high durability make them a reliable tool, helping you to work more efficiently and profitably.
More forwarder benefits

Some of our forwarder options

Comfort Ride 2021

Komatsu Comfort Ride

A forwarder operator spends many hours a day in the cab, making a pleasant and comfortable work environment extremely important. Komatsu Comfort Ride efficiently dampens jolts and vibrations, ensuring an ergonomic work environment. This in turn contributes to higher productivity and better profitability.

The new generation of Komatsu Comfort Ride comes with comfort-enhancing features like adjustable sideways firmness and automatic side levelling at standstill and at low speed. The elevated unloading mode now also works at low speed, to make it smoother to reposition the forwarder at the landing. Great news for all forwarder operators!

Download brochure

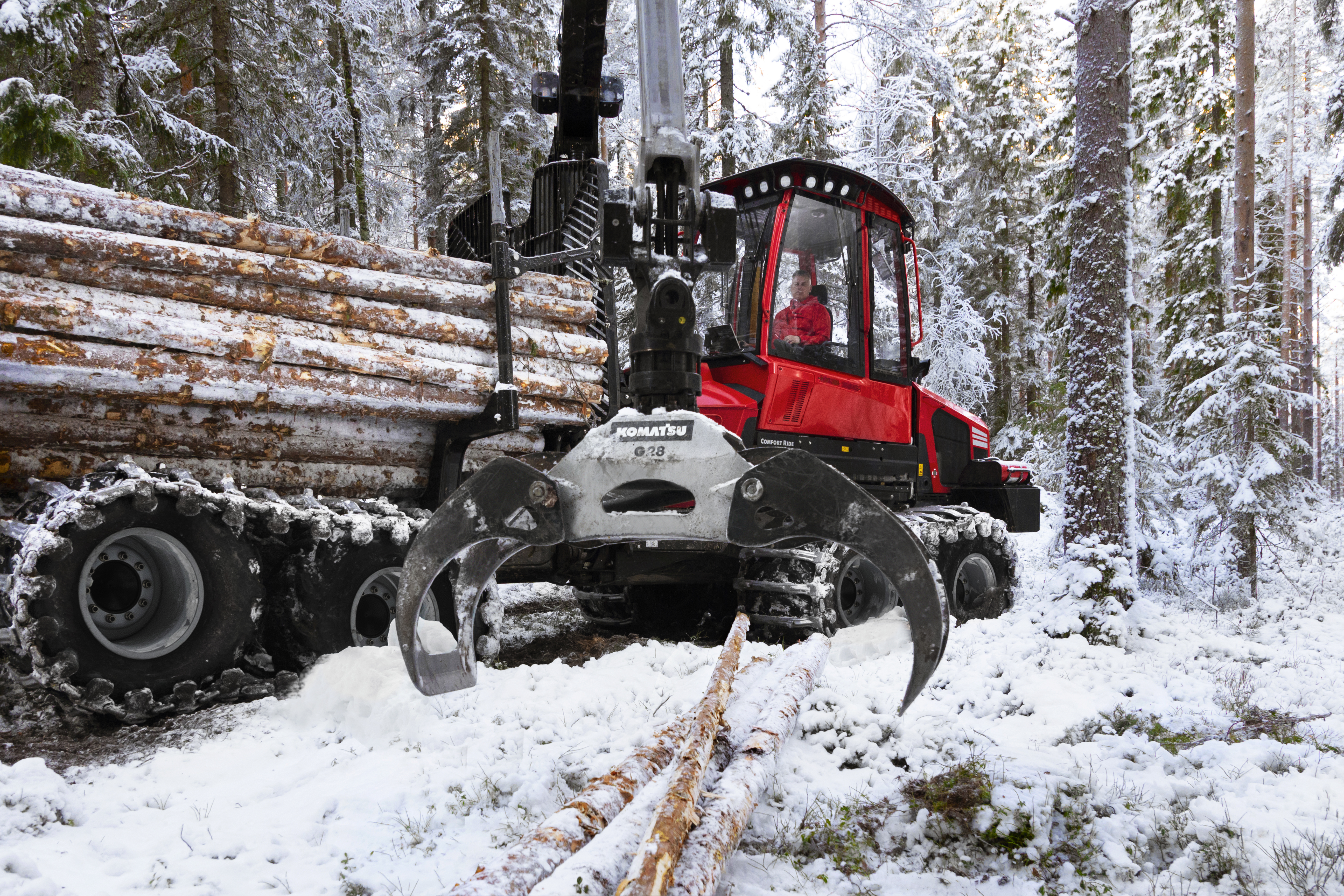

Komatsu Smart Crane

Smart Crane

Since such a large share of a forwarder operator's working day involves crane operation, increased efficiency offers great potential. Smart Crane provides the operator with advantages such as simpler crane operation, less physical strain and higher productivity. Advantages that benefit both profitability and the operator's wellbeing. Everything to make it as easy as possible for the operator to focus on what is truly important – moving timber to the roadside.

Download brochure
MaxiFleet

Smart Forestry

Smart Forestry gives you access to a collection of digital services that help make the workplace safe, smart, productive and sustainable - whether you have one or a hundred forest machines. You can keep track of your machines, collaborate with colleagues, and make wise decisions based on facts.

Smart Forestry consists of three different applications, making it easy for you to find the one that suits you and your business.

More About Smart Forestry

Specifications

825TX

Overview

Komatsu Forwarder Dimensions
A. Width

With 600/50x22,5 tyres: 2 600 mm (8'6")

B. Length, total

9 380 mm (30'9") (with shortest rear frame)

C. Length, front axle to middle joint

1 900 mm (6'3"), 2 150 mm (7'1") with tracking frame

D. Length, middle joint to rear axle

2 900 mm (9'6"), 2 650 mm (8'8") with tracking frame

E. Transport height

3 800 mm (12'6") (hoses included and with tire compression)

F. Ground clearance, at steering joint

580 mm (1'11")

Note

Stated dimensions are nominal and may vary slightly depending on production tolerances and choice of equipment.

Approximate weight

From 14 580 kg (32,143 lb)

Type

AGCO Power, 4-cylinder diesel engine with turbo and intercooler. EU Stage V (Europe), EPA Tier 4F (North America)

Stroke volume

4,9 l (1.3 gal)

Power

127 kW DIN at 1 900 rpm.

Torque

750 Nm at 1 500 rpm

Fuel Tank

145 l (38.3 gal)

Gross load

9 000 kg (19,842 lb)

Bunk area

3,9 m² (42 sq.ft)

Crane

Komatsu 105F

Reach

7.7 m (25’ 4”) / 9.5 m (31' 2'') /10 m (32' 9'')

Gross lifting torque

103 kNm (75,969 lb-ft)

Gross slewing torque

28,7 kNm (21,170 lb-ft)

Rotator

G121/GT151

Grapple

Komatsu G28

Max hydraulic flow

280 l/min (74 gal/min) at 2 000 rpm

Voltage

24 V

Battery capacity

2 x 140 Ah

Generator

2 x 100 A

Driving Speed

0 - appr. 25 km/h (0 - appr. 15.5 mph)

Tractive Force

150 kN (33,721lbf)

General information

The specifications describe possible equipment, not which equipment is standard or optional. Standard and optional equipment varies between countries. Your sales representative has an up-to-date list of what is included. Weights are based on the equipment specified in the basic specification. Specifications and designs are subject to alteration without prior notice.
