Komatsu 895

A reliable and productive partner

Komatsu 895

The Komatsu 895 forwarder is designed for high productivity. Every component has been developed and optimised for a load capacity of 20 tonnes. The 2020 year model is even more powerful than before. With even higher power, torque and tractive force the forwarder has outstanding performance for heavy loads.

Download brochure

Gross load

20 000 kg (44,092 lb)

Power

Stage V and Tier 4F: 214 kW DIN at 1 850 rpm

Torque

Stage V, Tier 4F and Stage II: 1 280 Nm at 1 500 rpm

Tractive force

262 kN (59,000 lbf)

Features

New - Smart Crane as option!

Now all our forwarders can be equipped with Smart Crane, with advantages such as simpler crane operation, less physical strain and higher productivity.

Click here for more information about Smart Crane

Komatsu Comfort Ride

A forwarder operator spends many hours a day in the cab, making a pleasant and comfortable work environment extremely important. Komatsu Comfort Ride efficiently dampens jolts and vibrations, ensuring an ergonomic work environment. This in turn contributes to higher productivity and better profitability.

The new generation of Komatsu Comfort Ride comes with comfort-enhancing features like adjustable sideways firmness and automatic side levelling at standstill and at low speed. The elevated unloading mode now also works at low speed, to make it smoother to reposition the forwarder at the landing. Great news for all forwarder operators!

More power for sustainable productivity

We have a brand new engine installation conforming to the latest emission legislation (Stage V). It also offers you many other advantages, such as an all new AdBlue system, a new exhaust system and hydraulic tappets. Despite the new larger engine installation we’ve managed to keep the same slim design with good all round visibility and views of the machine – right down to the wheels.

High load capacity

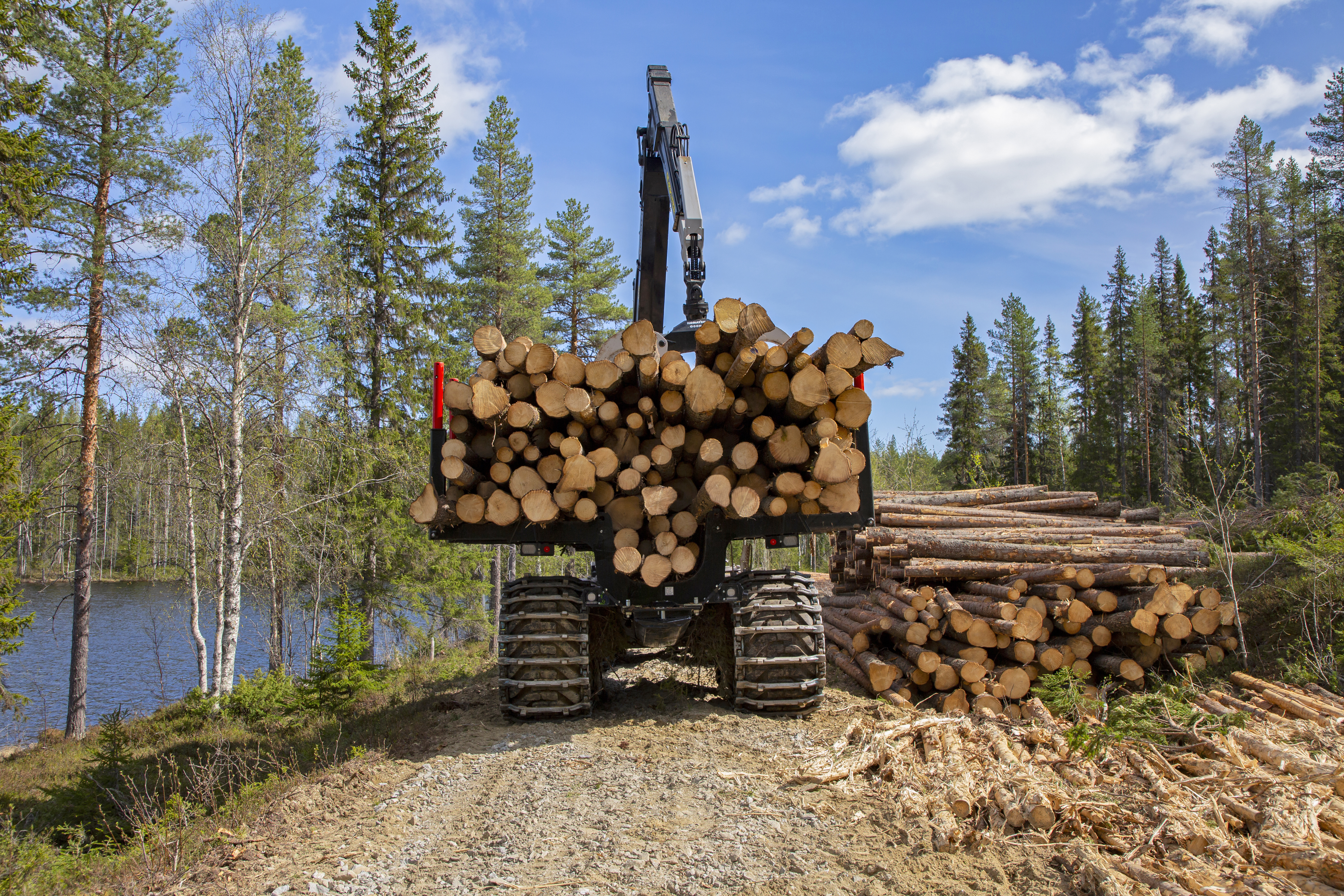

The new Komatsu 895 has a large bunk. FlexBunk, with its height adjustable stakes and ability to widen the bunk, provides a high load capacity. FlexGate, the flexible gate option, improves visibility and flexes out of the way if struck by the crane. This simplifies loading and minimises the risk of machine damage.

Maximum traction and manoeuvrability

The hydrostatic transmission system and the diesel engine’s performance are optimised to jointly provide maximum traction and manoeuvrability. A starting tractive force of 262 kN provides high torque at low engine speeds and traction is automatically adapted to changes in engine load due to terrain, obstacles, inclines and crane loads

Service friendly

Servicing and maintenance are quickly and easily conducted. All daily servicing can be performed from ground level via easily accessible service hatches and the dipsticks are quickly and easily checked. Servicing is better facilitated by the electrically powered hood and strategically located filters.

Smoother and faster transport

Komatsu Mini Steering Wheel means more space in the cab and a more comfortable driving experience. SpeedShift (Option) enables you to drive the machine at any speed between 0 and about 23 km/h without stopping to change gears – increasing productivity and saving fuel.

The transmission for tough conditions

High tractive effort and a strong transmission are some of the characteristics required for a forwarder to be operated in tough terrain. All Komatsu forwarders offer these advantages in the standard versions, but for particularly tough terrain, something extra is sometimes required in the form of endurance and strength. Therefore, we offer the XT option for some of our forwarder models.

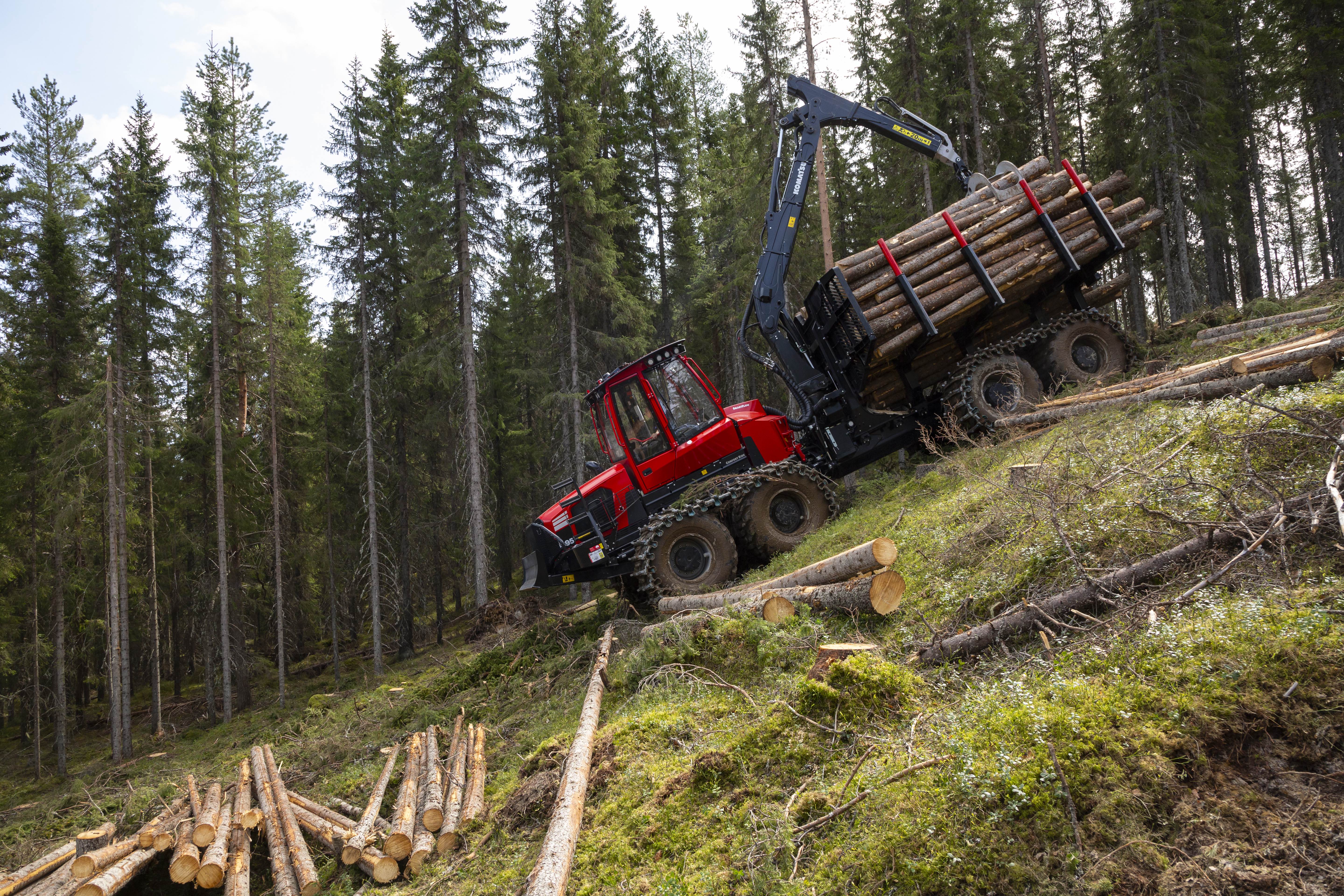

Komatsu 895 with the XT characteristics has higher traction which means higher offroad speed. This is ideal for machines used in hilly terrain or for scarification.

Specifications

895

Overview

Komatsu 895 forwarder dimensions
A. Width

With 780/50x28,5 tyres: 3 160 mm (10'4")

B. Length, total

10 790 mm (35'5") (with shortest rear frame)

C. Length, front axle to middle joint

2 000 mm (6'7")

D. Length, middle joint to rear axle

3 900 mm (12'10") (with shortest rear frame)

E. Transport height, with hoses and tire compression

4 050 mm (13'3")

F. Ground clearance, at steering joint

8WD: 790 mm (2'7")

Note

Stated dimensions are nominal and may vary slightly depending on production tolerances and choice of equipment.

Approximate weight

6WD: 20 400 kg (44,974 lb), 8WD: 23 600 kg (52,029 lb)

Type

AGCO Power, 6-cylinder diesel engine with turbo and intercooler. EU Stage V, Tier 4F, MAR-1 and Stage II.

Stroke volume

7.4 l (1.95 gal)

Power

EU Stage V and Tier 4F: 214 kW DIN at 1 850 rpm. Stage II: 210 kW DIN at 1 900 rpm. MAR-1: 193 kW DIN at 1 900 rpm.

Torque

EU Stage V, Tier 4F and Stage II: 1 280 Nm at 1 500 rpm. MAR-1: 1 000 Nm at 1 500 rpm

Fuel Tank

220 l (58 gal)

Gross load

20 000 kg (44,092 lb)

Bunk area

5.2–7.2 m² (56 - 77.5 sq.ft), depending on options and market.

Crane

Komatsu 165F

Reach

7.5 m (24'7") / 8.5 m (27'11") / 10 m (32'10")

Gross lifting torque

165 kNm (121,698 lb-ft)

Gross slewing torque

43.4 kNm (32,010 lb-ft)

Rotator

G121/GT151/GT181

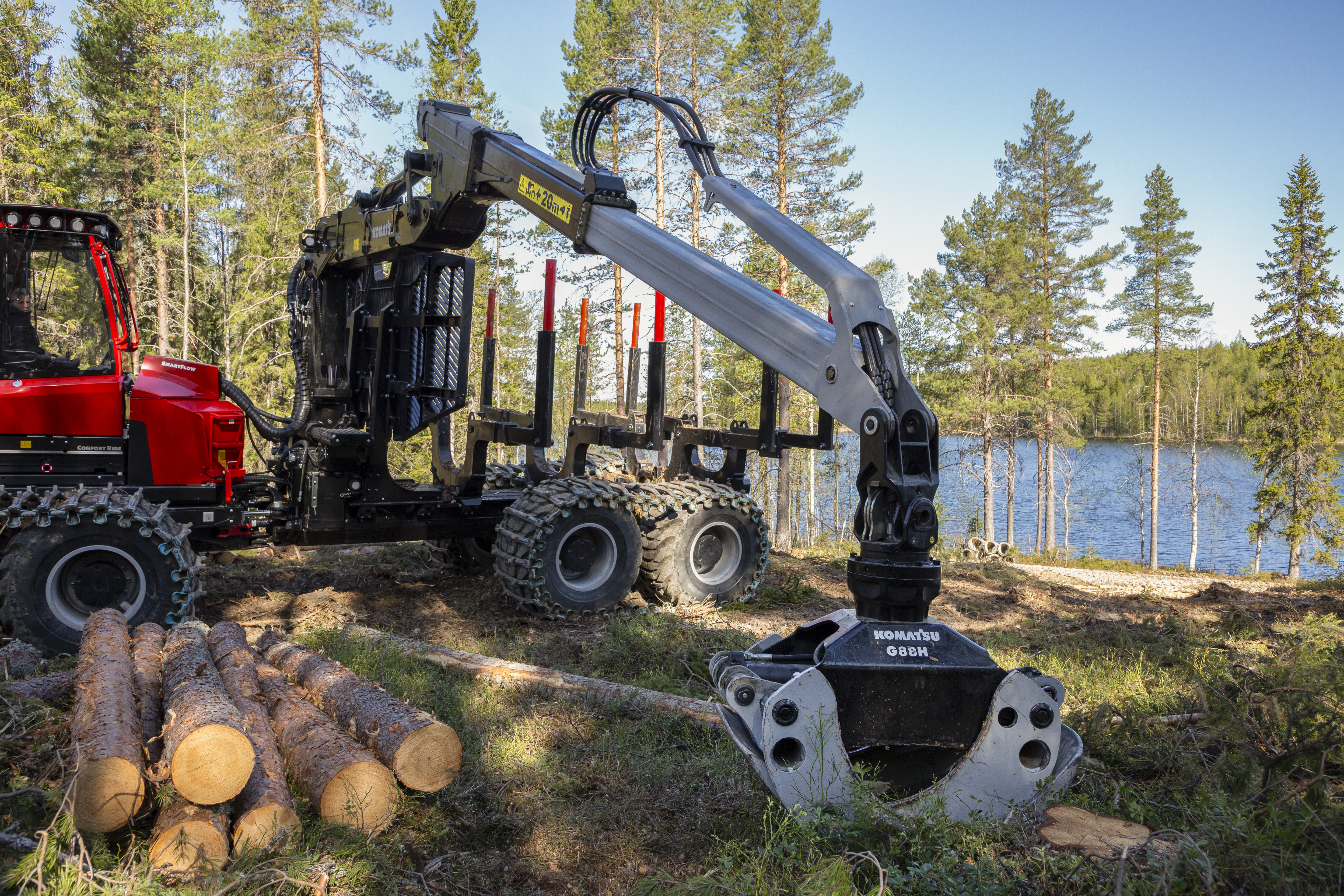

Grapple

We offer a wide selection of grapples, please contact your sales representative for more information.

Max hydraulic flow

360 l/min (95 gal/min) at 2 000 rpm

Voltage

24 V

Battery capacity

2 x 180 Ah

Generator

2 x 100 A

Driving Speed

0 - approx. 23 km/h (14,3 mph)

Tractive Force

262 kN

General information

The specifications describe possible equipment, not which equipment is standard or optional. Standard and optional equipment varies between countries. Your sales representative has an up-to-date list of what is included. Weights are based on the equipment specified in the basic specification. Specifications and designs are subject to alteration without prior notice.
