Komatsu 931XC-4
Low ground pressure and great stability - regardless of the terrain
Komatsu 931XC-4

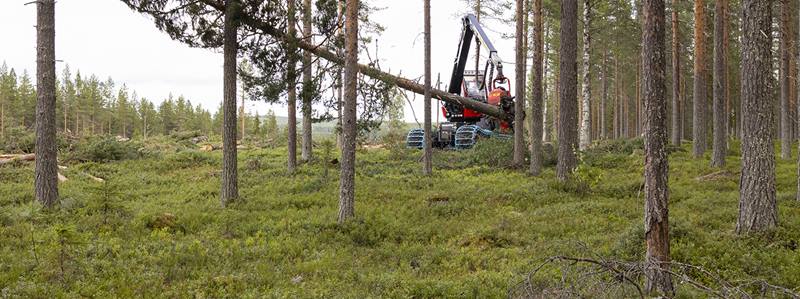

An effective and versatile harvester for anyone working in steep, rugged terrain. The eight-wheel design offers additional stability as well as lower ground pressure, leaving less of a mark on soft ground.
- 8WD design for high stability and great manoeuvrability in difficult terrain
- 240H crane with 8.7 / 10 / 11 m reach
- Choose from our range of options to customise your machine and make your working day even more comfortable and productive
Power
214 kW @ 1 850 rpm
EU Stage V, Tier 4F, MAR-1
Gross lifting torque
241kNm
177,752 lbf ft
Max tractive effort
207 kN
46,534 lbf
Weight
From 22 401 kg
Specifications
931XC-4
Overview
Dimensions
A. Width
With 600/55x26,5 tyres: 2 776 mm (9'1")
B. Length, total
8 005 mm
C. Length, front axle to middle joint
1 930 mm (6'4")
D. Length, middle joint to rear axle
2 150 mm (7'1")
E. Transport height
Straight cab: 3950–4010 mm (depending on options). Transport position (cab max rear tilt, crane forward, light ramp tilted): 3930 mm
F. Ground clearance at steering joint
695 mm
Note
Stated dimensions are nominal and may vary slightly depending on production tolerances and choice of equipment.
Weight
Approximate weight
From 22 401 kg
Engine
Type
AGCO Power 75FSTN-D5, 6-cylinder diesel engine with turbo and intercooler
Stroke volume
7.5 l (1.98 gal)
Power
214 kW @ 1 850 rpm (EU Stage V, Tier 4F, MAR-1)
Torque
1 280 Nm @ 1 850 rpm
Fuel tank
480 l (127 gal)
Boom
Model and reach
240H: 8.7 / 10 / 11 m (28'6.5" / 32'9.7" / 36'1")
Gross lifting torque
241kNm (177,752 lbf ft)
Gross slewing torque
54 kNm (39,828 lbf-ft)
Heads
Available heads
S92, C93, C124, S132, C144, 370E, S162E
Hydraulic system
Flow
485l/min @ 1470 rpm
System pressure
280 bar
Electrical system
Voltage
24 V
Battery capacity
2 x 185 Ah
Generator
200 A
Transmission
Driving speed
0-23.6 km/h (14.8 mph)
Tractive force
207 kN (46,534 lbf)
Notes
General information
The specifications describe possible equipment, not which equipment is standard or optional. Standard and optional equipment varies between countries. Your sales representative has an up-to-date list of what is included. Weights are based on the equipment specified in the basic specification. Specifications and designs are subject to alteration without prior notice.
